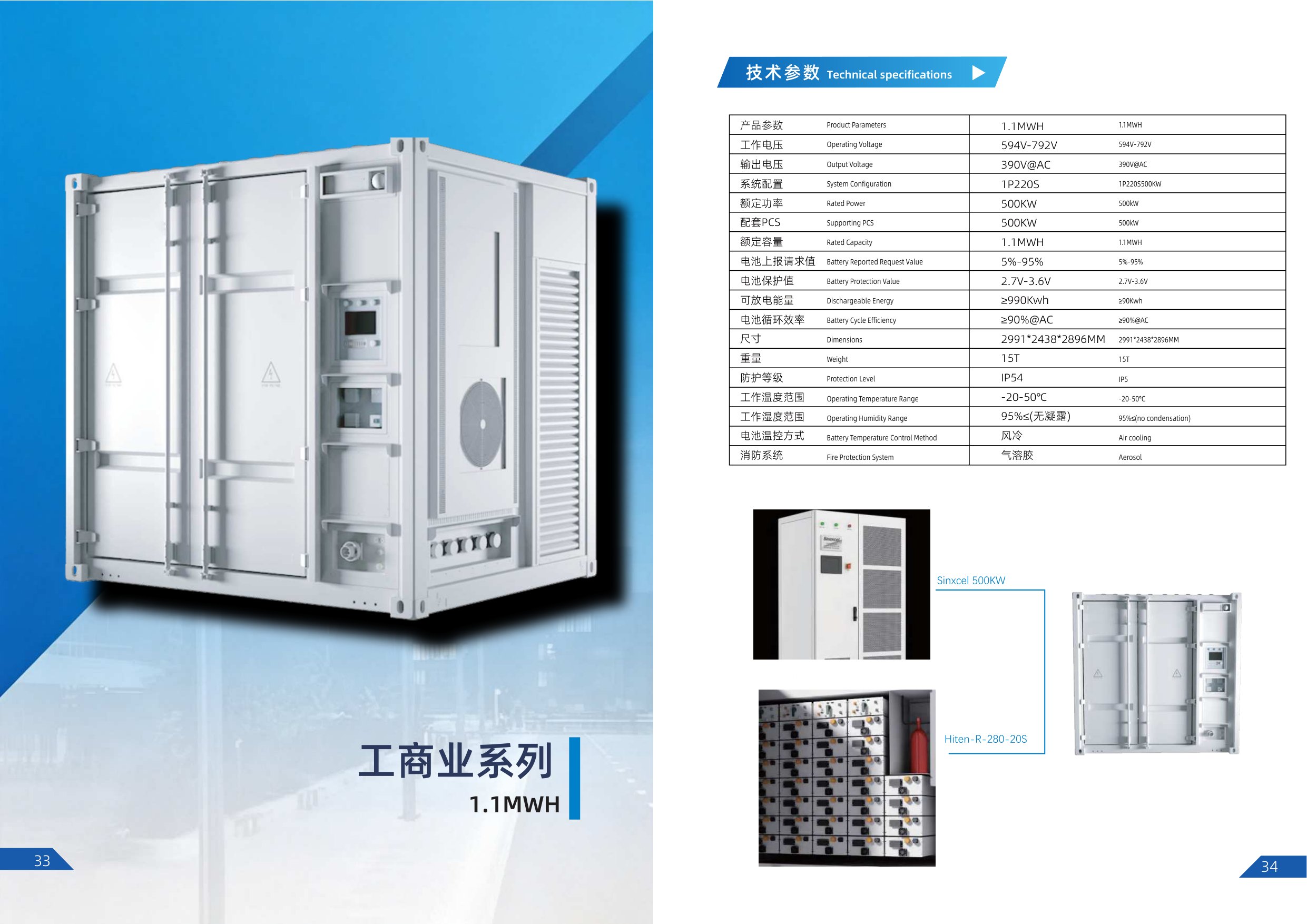

1.1MWH
1.1MWH C&I Energy Storage Container 500KW
Model: 1.1MWH
Key Features
- 1.1MWH commercial & industrial energy storage container
- 1P220S configuration with 500KW PCS
- ≥990Kwh dischargeable energy
- Air cooling with aerosol fire protection system
- IP54 protection
The 1.1MWH is part of BANAVE’s Commercial & Industrial range — 1.1MWH C&I Energy Storage Container 500KW. Contact us for datasheets, certification documents and OEM/ODM options.
Specifications
| Model | 1.1MWH |
|---|---|
| Operating Voltage | 594V-792V |
| Output Voltage | 390V@AC |
| System Configuration | 1P220S |
| Rated Power | 500KW |
| Supporting PCS | 500KW |
| Rated Capacity | 1.1MWH |
| Battery Reported Request Value | 5%-95% |
| Battery Protection Value | 2.7V-3.6V |
| Dischargeable Energy | ≥990Kwh |
| Battery Cycle Efficiency | ≥90%@AC |
| Dimensions | 2991*2438*2896MM |
| Weight | 15T |
| Protection Level | IP54 |
| Operating Temperature Range | -20-50℃ |
| Operating Humidity Range | 95%≤(no condensation) |
| Battery Temperature Control Method | Air cooling |
| Fire Protection System | Aerosol |
