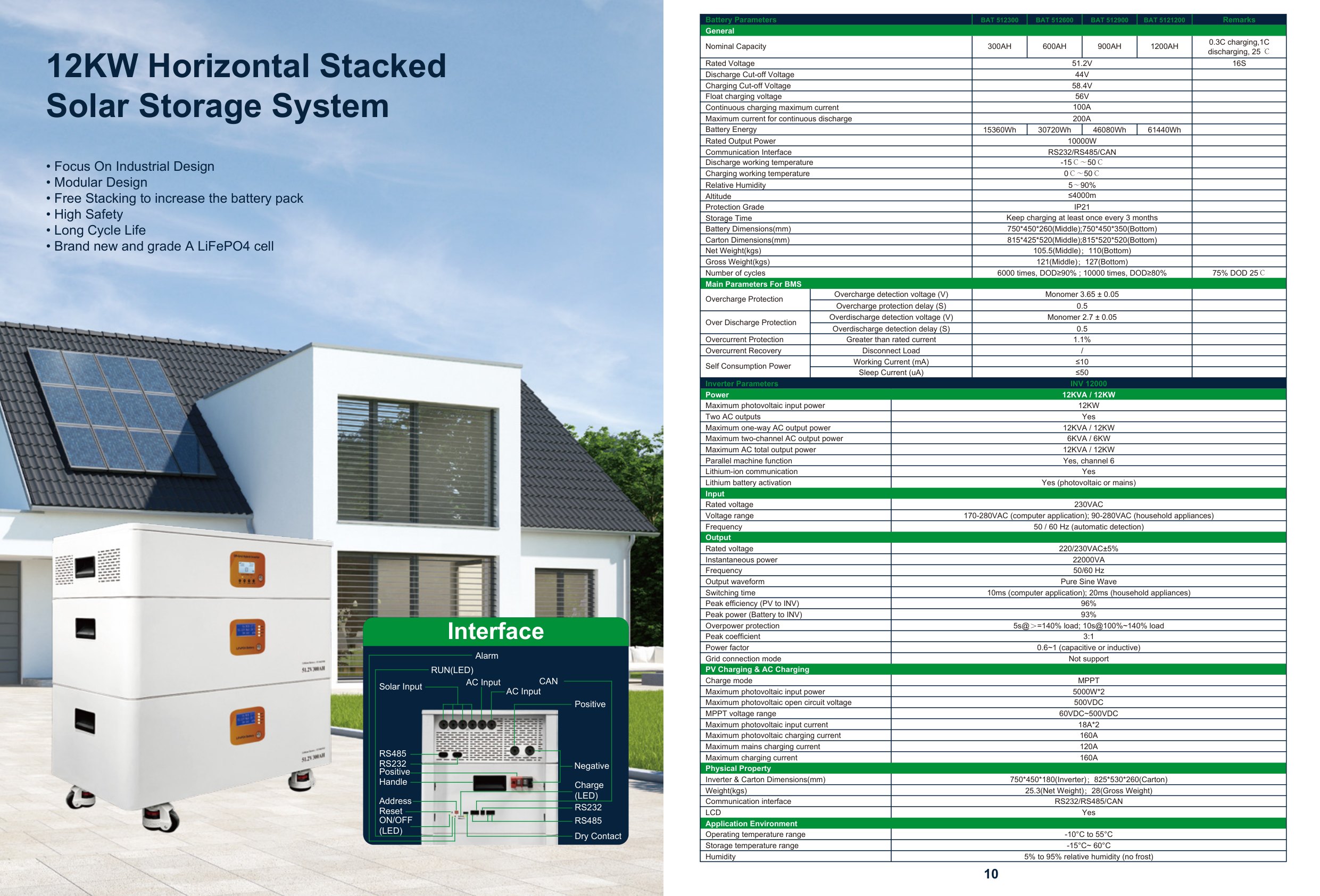

12KW Horizontal Stacked Solar Storage System
12KW Horizontal Stacked Solar Storage System 15360-61440Wh
Model: 12KW Horizontal Stacked Solar Storage System
Key Features
- Focus on industrial design
- Modular design
- Free stacking to increase the battery pack
- High safety
- Long cycle life
- Brand new and grade A LiFePO4 cell
The 12KW Horizontal Stacked Solar Storage System is part of BANAVE’s Solar Energy Storage range — 12KW Horizontal Stacked Solar Storage System 15360-61440Wh. Contact us for datasheets, certification documents and OEM/ODM options.
Specifications
| Model | 12KW Horizontal Stacked Solar Storage System |
|---|---|
| Battery - Nominal Capacity | 300AH / 600AH / 900AH / 1200AH |
| Battery - Rated Voltage | 51.2V |
| Battery - Discharge Cut-off Voltage | 44V |
| Battery - Charging Cut-off Voltage | 58.4V |
| Battery - Float charging voltage | 56V |
| Battery - Continuous charging maximum current | 100A |
| Battery - Maximum current for continuous discharge | 200A |
| Battery - Battery Energy | 15360Wh / 30720Wh / 46080Wh / 61440Wh |
| Battery - Rated Output Power | 10000W |
| Battery - Communication Interface | RS232/RS485/CAN |
| Battery - Discharge working temperature | -15℃～50℃ |
| Battery - Charging working temperature | 0℃～50℃ |
| Battery - Relative Humidity | 5～90% |
| Battery - Altitude | ≤4000m |
| Battery - Protection Grade | IP21 |
| Battery - Storage Time | Keep charging at least once every 3 months |
| Battery - Battery Dimensions(mm) | 750*450*260(Middle)；750*450*350(Bottom) |
| Battery - Carton Dimensions(mm) | 815*425*520(Middle)；815*520*520(Bottom) |
| Battery - Net Weight(kgs) | 105.5(Middle)；110(Bottom) |
| Battery - Gross Weight(kgs) | 121(Middle)；127(Bottom) |
| Battery - Number of cycles | 6000 times, DOD≥90% ; 10000 times, DOD≥80% |
| Inverter Parameters - Model | INV 12000 |
| Inverter - Power | 12KVA / 12KW |
| Inverter - Maximum photovoltaic input power | 12KW |
| Inverter - Two AC outputs | Yes |
| Inverter - Maximum one-way AC output power | 12KVA / 12KW |
| Inverter - Maximum two-channel AC output power | 6KVA / 6KW |
| Inverter - Maximum AC total output power | 12KVA / 12KW |
| Inverter - Parallel machine function | Yes, channel 6 |
| Inverter - Lithium-ion communication | Yes |
| Inverter - Lithium battery activation | Yes (photovoltaic or mains) |
| Inverter - Input Rated voltage | 230VAC |
| Inverter - Input Voltage range | 170-280VAC (computer application); 90-280VAC (household appliances) |
| Inverter - Input Frequency | 50 / 60 Hz (automatic detection) |
| Inverter - Output Rated voltage | 220/230VAC±5% |
| Inverter - Instantaneous power | 22000VA |
| Inverter - Output Frequency | 50/60 Hz |
| Inverter - Output waveform | Pure Sine Wave |
| Inverter - Switching time | 10ms (computer application); 20ms (household appliances) |
| Inverter - Peak efficiency (PV to INV) | 96% |
| Inverter - Peak power (Battery to INV) | 93% |
| Inverter - Overpower protection | 5s@＞=140% load; 10s@100%~140% load |
| Inverter - Peak coefficient | 3:1 |
| Inverter - Power factor | 0.6~1 (capacitive or inductive) |
| Inverter - Grid connection mode | Not support |
| Inverter - Charge mode | MPPT |
| Inverter - Maximum photovoltaic input power (charge) | 5000W*2 |
| Inverter - Maximum photovoltaic open circuit voltage | 500VDC |
| Inverter - MPPT voltage range | 60VDC~500VDC |
| Inverter - Maximum photovoltaic input current | 18A*2 |
| Inverter - Maximum photovoltaic charging current | 160A |
| Inverter - Maximum mains charging current | 120A |
| Inverter - Maximum charging current | 160A |
| Inverter - Inverter & Carton Dimensions(mm) | 750*450*180(Inverter)；825*530*260(Carton) |
| Inverter - Weight(kgs) | 25.3(Net Weight)；28(Gross Weight) |
| Inverter - Communication interface | RS232/RS485/CAN |
| Inverter - LCD | Yes |
| Inverter - Operating temperature range | -10°C to 55°C |
| Inverter - Storage temperature range | -15°C~ 60°C |
| Inverter - Humidity | 5% to 95% relative humidity (no frost) |
