145.08KWH
145.08KWh All-in-One C&I Energy Storage System 50KW
Model: 145.08KWH
Key Features
- 145.08KWh all-in-one commercial energy storage
- 50KW rated power with 3L/N/PE 230/400V AC
- ≥6000 cycles cycle life
- IP54 with aerosol fire protection
The 145.08KWH is part of BANAVE’s Commercial & Industrial range — 145.08KWh All-in-One C&I Energy Storage System 50KW. Contact us for datasheets, certification documents and OEM/ODM options.

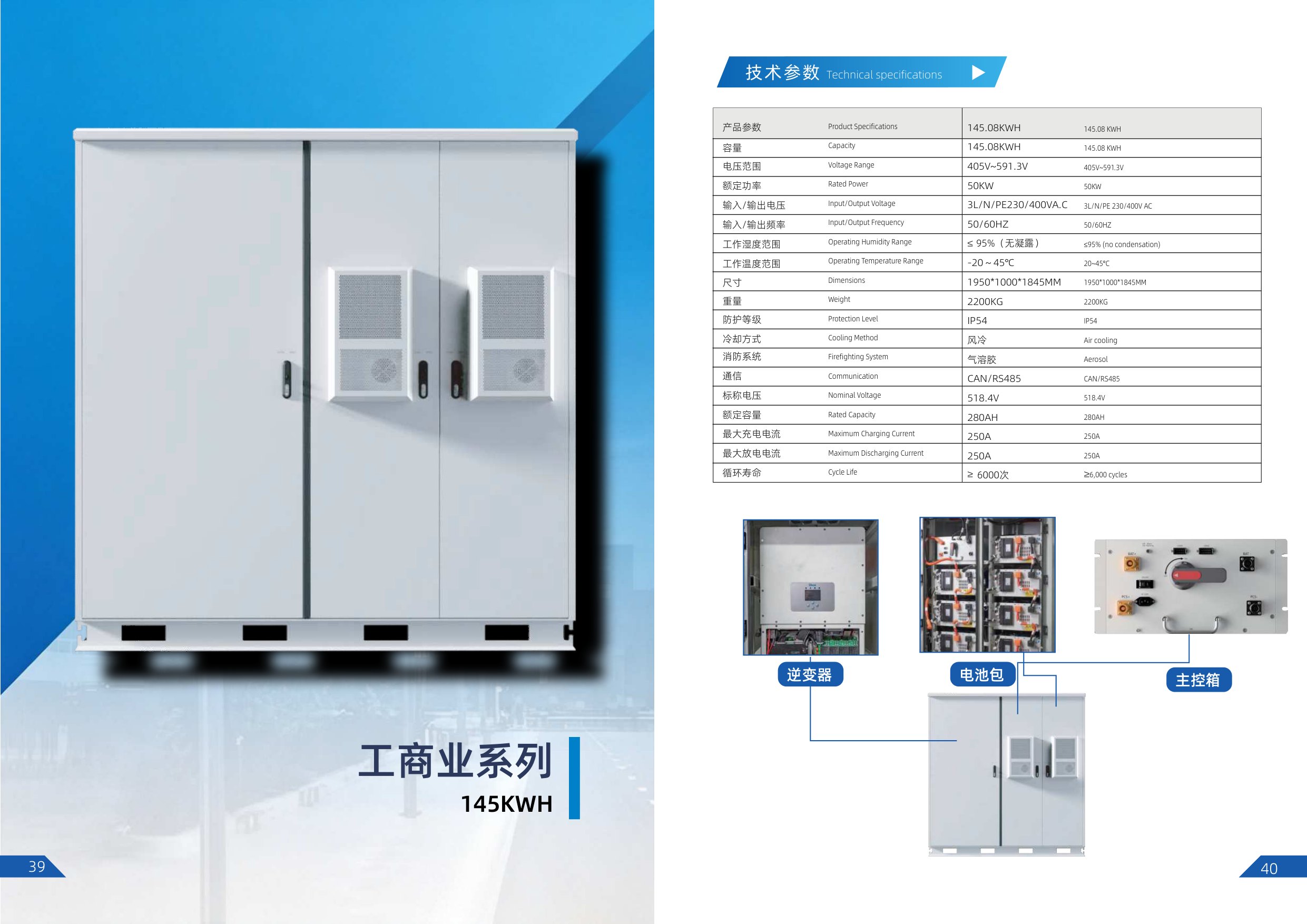

Specifications
| Model | 145.08KWH |
|---|---|
| Capacity | 145.08KWH |
| Voltage Range | 405V~591.3V |
| Rated Power | 50KW |
| Input/Output Voltage | 3L/N/PE 230/400V AC |
| Input/Output Frequency | 50/60HZ |
| Operating Humidity Range | ≤95% (no condensation) |
| Operating Temperature Range | -20~45℃ |
| Dimensions | 1950*1000*1845MM |
| Weight | 2200KG |
| Protection Level | IP54 |
| Cooling Method | Air cooling |
| Firefighting System | Aerosol |
| Communication | CAN/RS485 |
| Battery - Nominal Voltage | 518.4V |
| Battery - Rated Capacity | 280AH |
| Battery - Maximum Charging Current | 250A |
| Battery - Maximum Discharging Current | 250A |
| Battery - Cycle Life | ≥6,000 cycles |
