All 243600

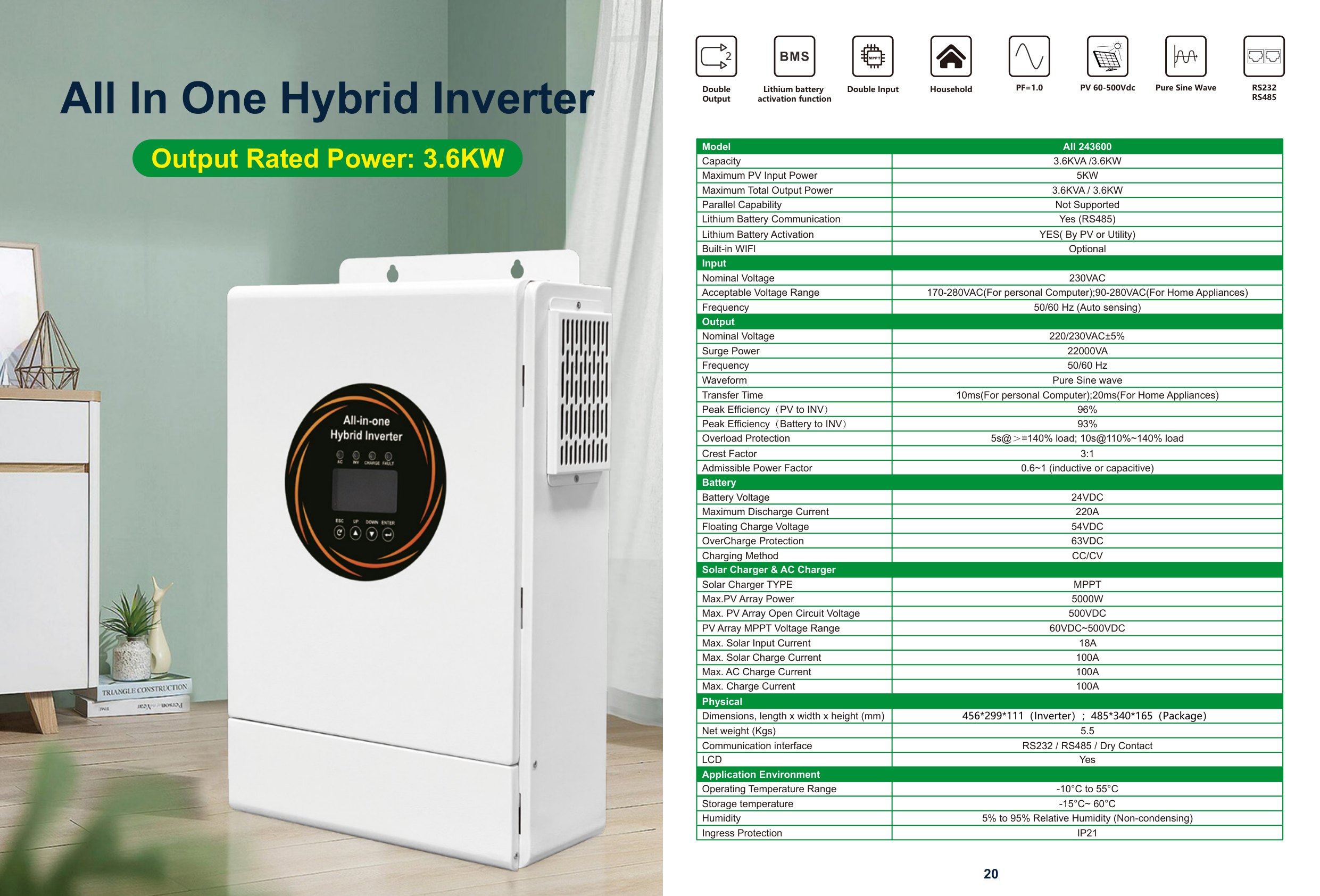

All-In-One Hybrid Inverter 3.6KVA/3.6KW
Model: All 243600
Key Features
- All-in-one hybrid inverter 3.6KVA/3.6KW
- Double input
- PF=1.0
- PV 60-500Vdc
- Pure sine wave output
- RS232/RS485
The All 243600 is part of BANAVE’s Solar Energy Storage range — all-In-One Hybrid Inverter 3.6KVA/3.6KW. Contact us for datasheets, certification documents and OEM/ODM options.
Specifications
| Model | All 243600 |
|---|---|
| Capacity | 3.6KVA /3.6KW |
| Maximum PV Input Power | 5KW |
| Maximum Total Output Power | 3.6KVA / 3.6KW |
| Parallel Capability | Not Supported |
| Lithium Battery Communication | Yes (RS485) |
| Lithium Battery Activation | YES( By PV or Utility) |
| Built-in WIFI | Optional |
| Input - Nominal Voltage | 230VAC |
| Input - Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280VAC(For Home Appliances) |
| Input - Frequency | 50/60 Hz (Auto sensing) |
| Output - Nominal Voltage | 220/230VAC±5% |
| Output - Surge Power | 22000VA |
| Output - Waveform | Pure Sine wave |
| Output - Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) |
| Peak Efficiency | |
| Peak Efficiency | |
| Overload Protection | 5s@＞=140% load; 10s@110%~140% load |
| Crest Factor | 3:1 |
| Admissible Power Factor | 0.6~1 (inductive or capacitive) |
| Battery - Battery Voltage | 24VDC |
| Battery - Maximum Discharge Current | 220A |
| Battery - Floating Charge Voltage | 54VDC |
| Battery - OverCharge Protection | 63VDC |
| Battery - Charging Method | CC/CV |
| Solar Charger TYPE | MPPT |
| Max.PV Array Power | 5000W |
| Max. PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 60VDC~500VDC |
| Max. Solar Input Current | 18A |
| Max. Solar Charge Current | 100A |
| Max. AC Charge Current | 100A |
| Max. Charge Current | 100A |
| Dimensions (L x W x H mm) | 456*299*111（Inverter）；485*340*165（Package） |
| Net weight (Kgs) | 5.5 |
| Communication interface | RS232 / RS485 / Dry Contact |
| LCD | Yes |
| Operating Temperature Range | -10°C to 55°C |
| Storage temperature | -15°C~ 60°C |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Ingress Protection | IP21 |
