All 4812000

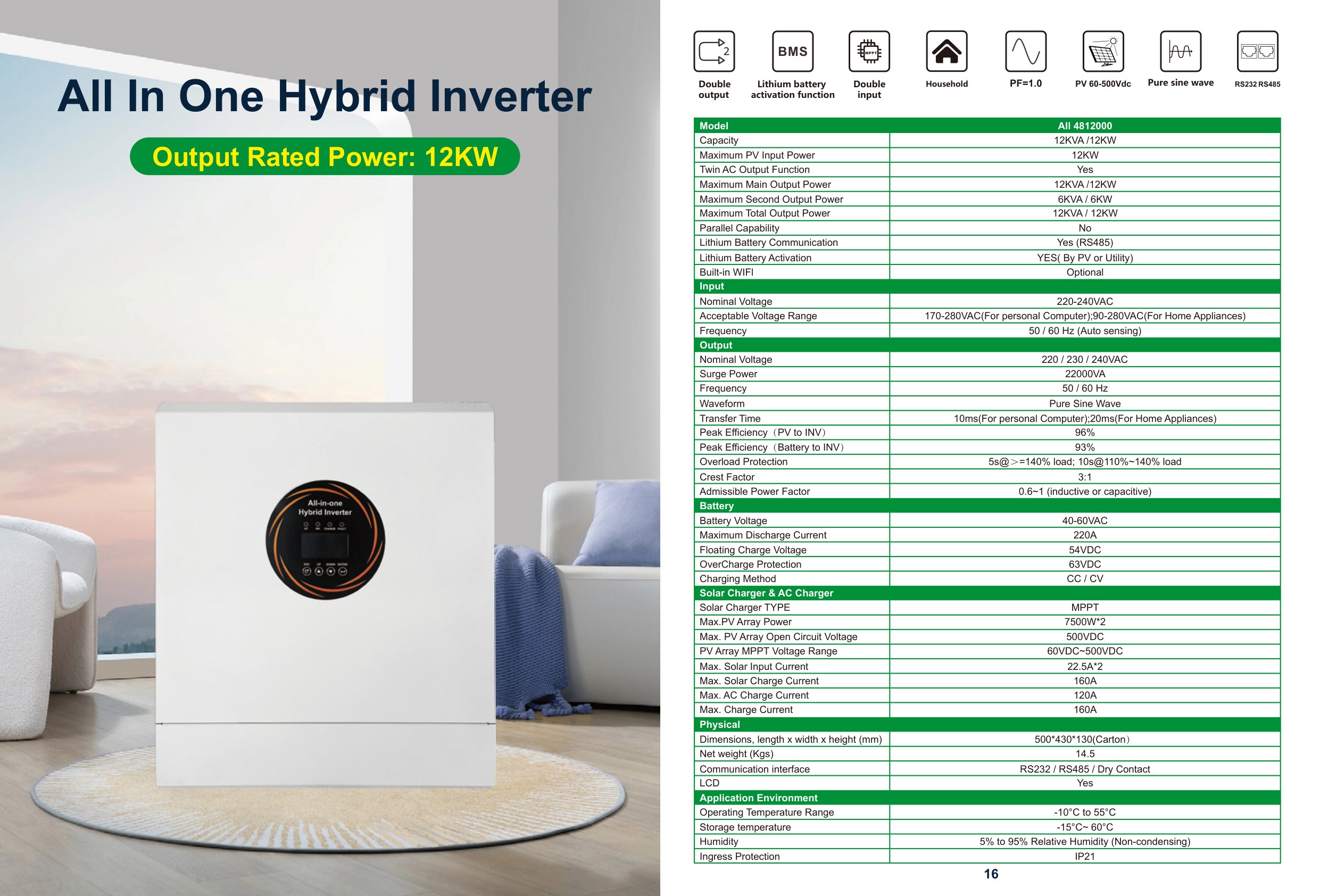

All-In-One Hybrid Inverter 12KVA/12KW
Model: All 4812000
Key Features
- All-in-one hybrid inverter 12KVA/12KW
- Twin AC output function
- Pure sine wave output
- MPPT solar charger up to 7500W*2
- Built-in Wi-Fi optional
The All 4812000 is part of BANAVE’s Solar Energy Storage range — all-In-One Hybrid Inverter 12KVA/12KW. Contact us for datasheets, certification documents and OEM/ODM options.
Specifications
| Model | All 4812000 |
|---|---|
| Capacity | 12KVA /12KW |
| Maximum PV Input Power | 12KW |
| Twin AC Output Function | Yes |
| Maximum Main Output Power | 12KVA /12KW |
| Maximum Second Output Power | 6KVA / 6KW |
| Maximum Total Output Power | 12KVA / 12KW |
| Parallel Capability | No |
| Lithium Battery Communication | Yes (RS485) |
| Lithium Battery Activation | YES( By PV or Utility) |
| Built-in WIFI | Optional |
| Input - Nominal Voltage | 220-240VAC |
| Input - Acceptable Voltage Range | 170-280VAC(For personal Computer);90-280VAC(For Home Appliances) |
| Input - Frequency | 50 / 60 Hz (Auto sensing) |
| Output - Nominal Voltage | 220 / 230 / 240VAC |
| Output - Surge Power | 22000VA |
| Output - Waveform | Pure Sine Wave |
| Output - Transfer Time | 10ms(For personal Computer);20ms(For Home Appliances) |
| Peak Efficiency | |
| Peak Efficiency | |
| Overload Protection | 5s@＞=140% load; 10s@110%~140% load |
| Crest Factor | 3:1 |
| Admissible Power Factor | 0.6~1 (inductive or capacitive) |
| Battery - Battery Voltage | 40-60VAC |
| Battery - Maximum Discharge Current | 220A |
| Battery - Floating Charge Voltage | 54VDC |
| Battery - OverCharge Protection | 63VDC |
| Battery - Charging Method | CC / CV |
| Solar Charger TYPE | MPPT |
| Max.PV Array Power | 7500W*2 |
| Max. PV Array Open Circuit Voltage | 500VDC |
| PV Array MPPT Voltage Range | 60VDC~500VDC |
| Max. Solar Input Current | 22.5A*2 |
| Max. Solar Charge Current | 160A |
| Max. AC Charge Current | 120A |
| Max. Charge Current | 160A |
| Dimensions (L x W x H mm) | 500*430*130(Carton） |
| Net weight (Kgs) | 14.5 |
| Communication interface | RS232 / RS485 / Dry Contact |
| LCD | Yes |
| Operating Temperature Range | -10°C to 55°C |
| Storage temperature | -15°C~ 60°C |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Ingress Protection | IP21 |
