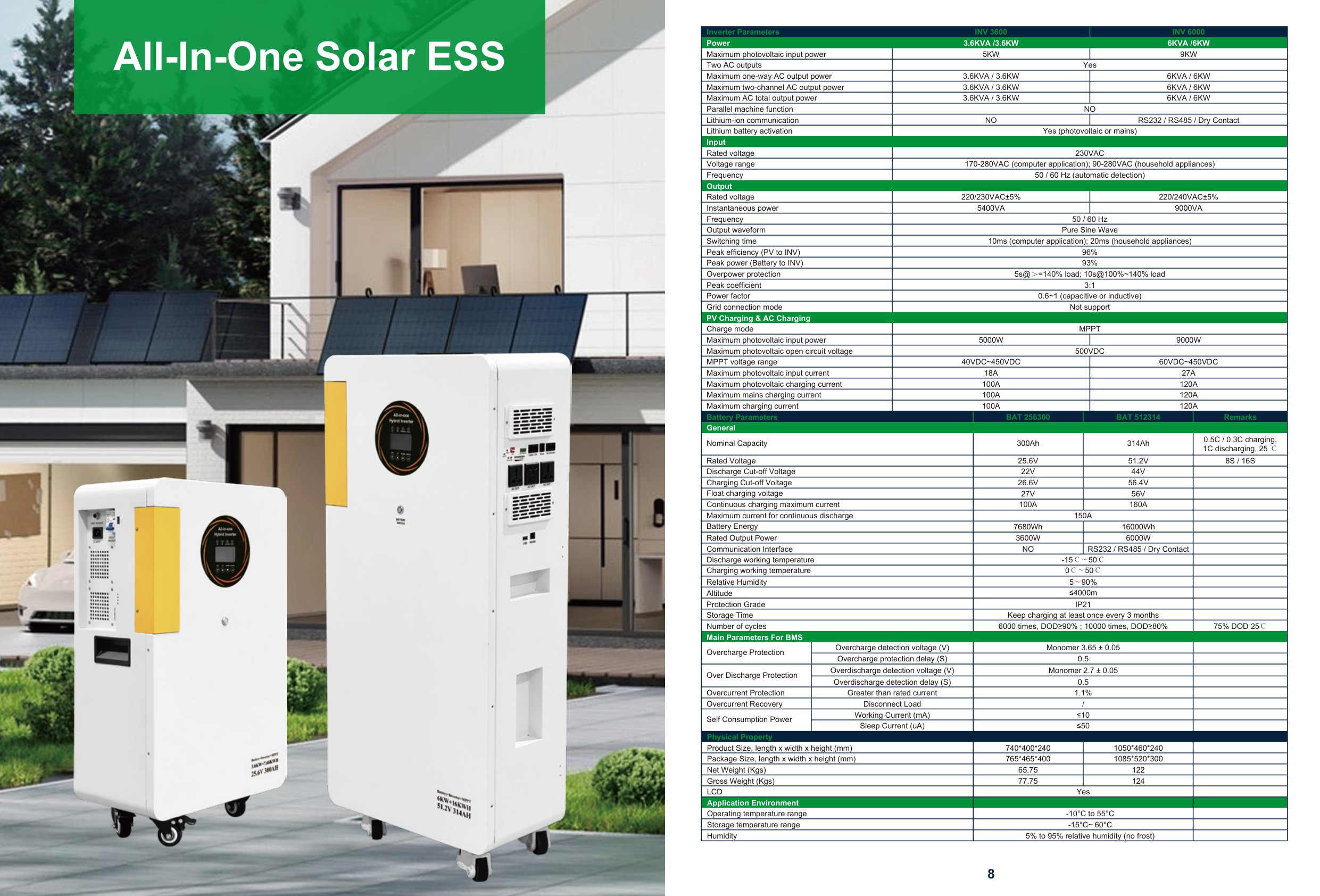

All-In-One Solar ESS
All-In-One Solar ESS 3.6KW with 7680Wh LiFePO4 battery
Model: All-In-One Solar ESS
Key Features
- All-in-one solar energy storage system
- 3.6KVA/3.6KW inverter with 25.6V 300Ah battery (7680Wh)
- MPPT solar charging up to 5000W
- Pure sine wave output
The All-In-One Solar ESS is part of BANAVE’s Solar Energy Storage range — all-In-One Solar ESS 3.6KW with 7680Wh LiFePO4 battery. Contact us for datasheets, certification documents and OEM/ODM options.
Specifications
| Model | All-In-One Solar ESS |
|---|---|
| Inverter - Power | 3.6KVA /3.6KW |
| Inverter - Maximum photovoltaic input power | 5KW |
| Inverter - Two AC outputs | Yes |
| Inverter - Maximum AC total output power | 3.6KVA / 3.6KW |
| Inverter - Parallel machine function | NO |
| Inverter - Lithium-ion communication | NO |
| Inverter - Lithium battery activation | Yes (photovoltaic or mains) |
| Input - Rated voltage | 230VAC |
| Input - Voltage range | 170-280VAC (computer application); 90-280VAC (household appliances) |
| Input - Frequency | 50 / 60 Hz (automatic detection) |
| Output - Rated voltage | 220/230VAC±5% |
| Output - Instantaneous power | 5400VA |
| Output - Output waveform | Pure Sine Wave |
| Output - Switching time | 10ms (computer application); 20ms (household appliances) |
| Peak efficiency (PV to INV) | 96% |
| Peak power (Battery to INV) | 93% |
| Overpower protection | 5s@＞=140% load; 10s@100%~140% load |
| Peak coefficient | 3:1 |
| Power factor | 0.6~1 (capacitive or inductive) |
| Grid connection mode | Not support |
| Charge mode | MPPT |
| Maximum photovoltaic input power | 5000W |
| Maximum photovoltaic open circuit voltage | 500VDC |
| MPPT voltage range | 40VDC~450VDC |
| Maximum photovoltaic input current | 18A |
| Maximum photovoltaic charging current | 100A |
| Maximum mains charging current | 100A |
| Maximum charging current | 100A |
| Battery - Nominal Capacity | 300Ah |
| Battery - Rated Voltage | 25.6V |
| Battery - Discharge Cut-off Voltage | 22V |
| Battery - Charging Cut-off Voltage | 26.6V |
| Battery - Float charging voltage | 27V |
| Battery - Continuous charging maximum current | 100A |
| Battery - Maximum current for continuous discharge | 150A |
| Battery - Battery Energy | 7680Wh |
| Battery - Rated Output Power | 3600W |
| Battery - Communication Interface | NO |
| Battery - Discharge working temperature | -15℃～50℃ |
| Battery - Charging working temperature | 0℃～50℃ |
| Battery - Relative Humidity | 5～90% |
| Battery - Altitude | ≤4000m |
| Battery - Protection Grade | IP21 |
| Battery - Number of cycles | 6000 times, DOD≥90% ; 10000 times, DOD≥80% |
| Battery - Product Size | 740*400*240 |
| Battery - Net Weight | 65.75 |
