BP Series
BP Series 12.8V 50-200Ah LiFePO4 battery pack
Model: BP Series
Key Features
- 1:1 perfect replacement of lead-acid and gel batteries, from 50Ah to 200Ah
- The most cost-effective solution for 12V and 24V home energy storage systems
- UPS function
- For solar & wind power system, golf cart, EV/e-bike/e-rickshaw and lighting
The BP Series is part of BANAVE’s Solar Energy Storage range — bP Series 12.8V 50-200Ah LiFePO4 battery pack. Contact us for datasheets, certification documents and OEM/ODM options.

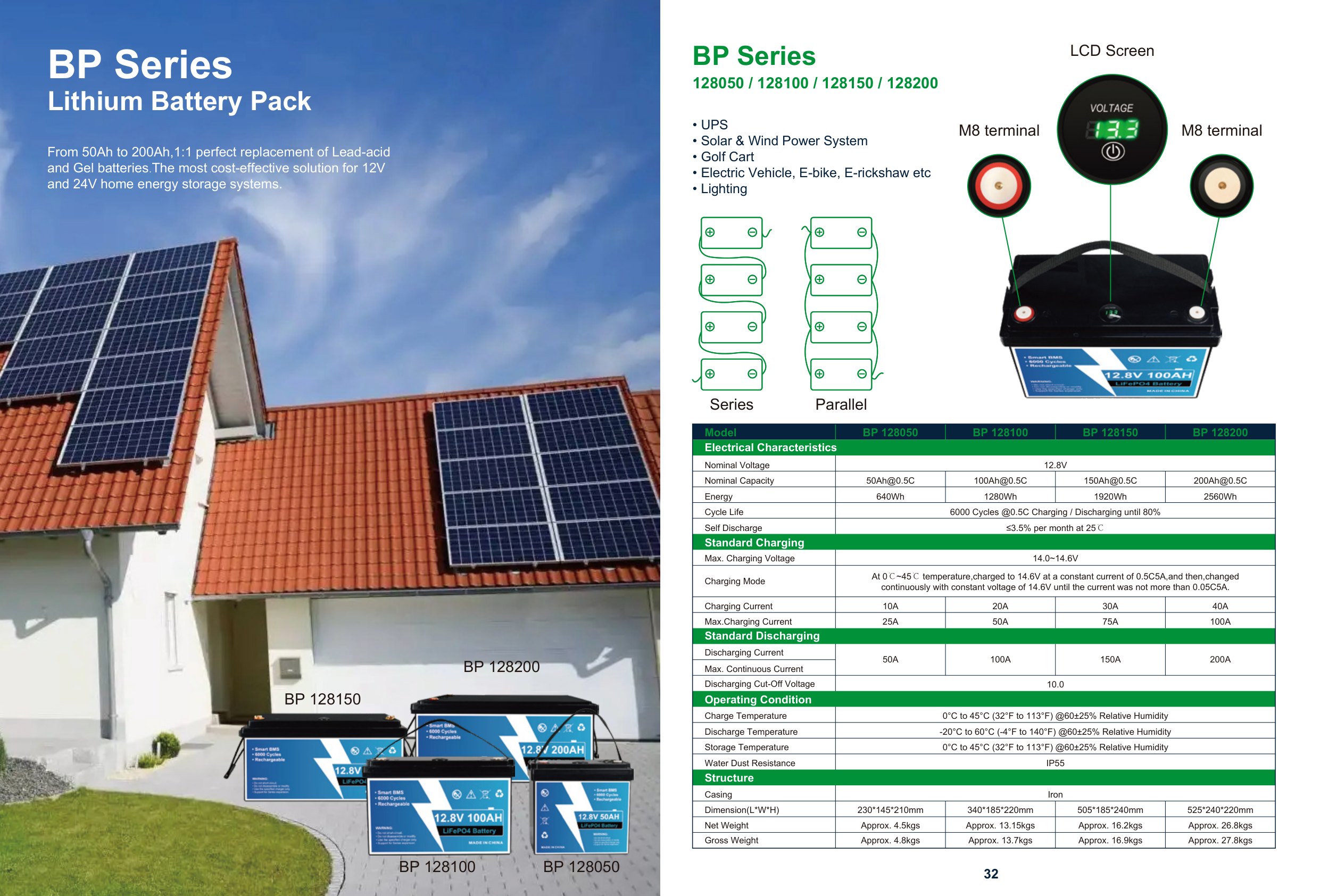

Specifications
| Model | BP 128050 / BP 128100 / BP 128150 / BP 128200 |
|---|---|
| Nominal Voltage | 12.8V |
| Nominal Capacity | 50Ah@0.5C / 100Ah@0.5C / 150Ah@0.5C / 200Ah@0.5C |
| Energy | 640Wh / 1280Wh / 1920Wh / 2560Wh |
| Cycle Life | 6000 Cycles @0.5C Charging / Discharging until 80% |
| Self Discharge | ≤3.5% per month at 25℃ |
| Max. Charging Voltage | 14.0~14.6V |
| Charging Current | 10A / 20A / 30A / 40A |
| Max.Charging Current | 25A / 50A / 75A / 100A |
| Max. Continuous Discharging Current | 50A / 100A / 150A / 200A |
| Discharging Cut-Off Voltage | 10.0 |
| Charge Temperature | 0°C to 45°C (32°F to 113°F) @60±25% Relative Humidity |
| Discharge Temperature | -20°C to 60°C (-4°F to 140°F) @60±25% Relative Humidity |
| Storage Temperature | 0°C to 45°C (32°F to 113°F) @60±25% Relative Humidity |
| Water Dust Resistance | IP55 |
| Casing | Iron |
| Dimension(L*W*H) | 230*145*210mm / 340*185*220mm / 505*185*240mm / 525*240*220mm |
| Net Weight | Approx. 4.5kgs / 13.15kgs / 16.2kgs / 26.8kgs |
| Gross Weight | Approx. 4.8kgs / 13.7kgs / 16.9kgs / 27.8kgs |
