JH-314L
DIY Kit Series 51.2V 314AH
Model: JH-314L
Key Features
- 51.2V 314AH LiFePO4 DIY kit battery
- 8000 cycles @25℃ 50A charge/discharge
- CAN & RS485 communication
- IP20 protection level
The JH-314L is part of BANAVE’s Home Energy Storage range — dIY Kit Series 51.2V 314AH. Contact us for datasheets, certification documents and OEM/ODM options.

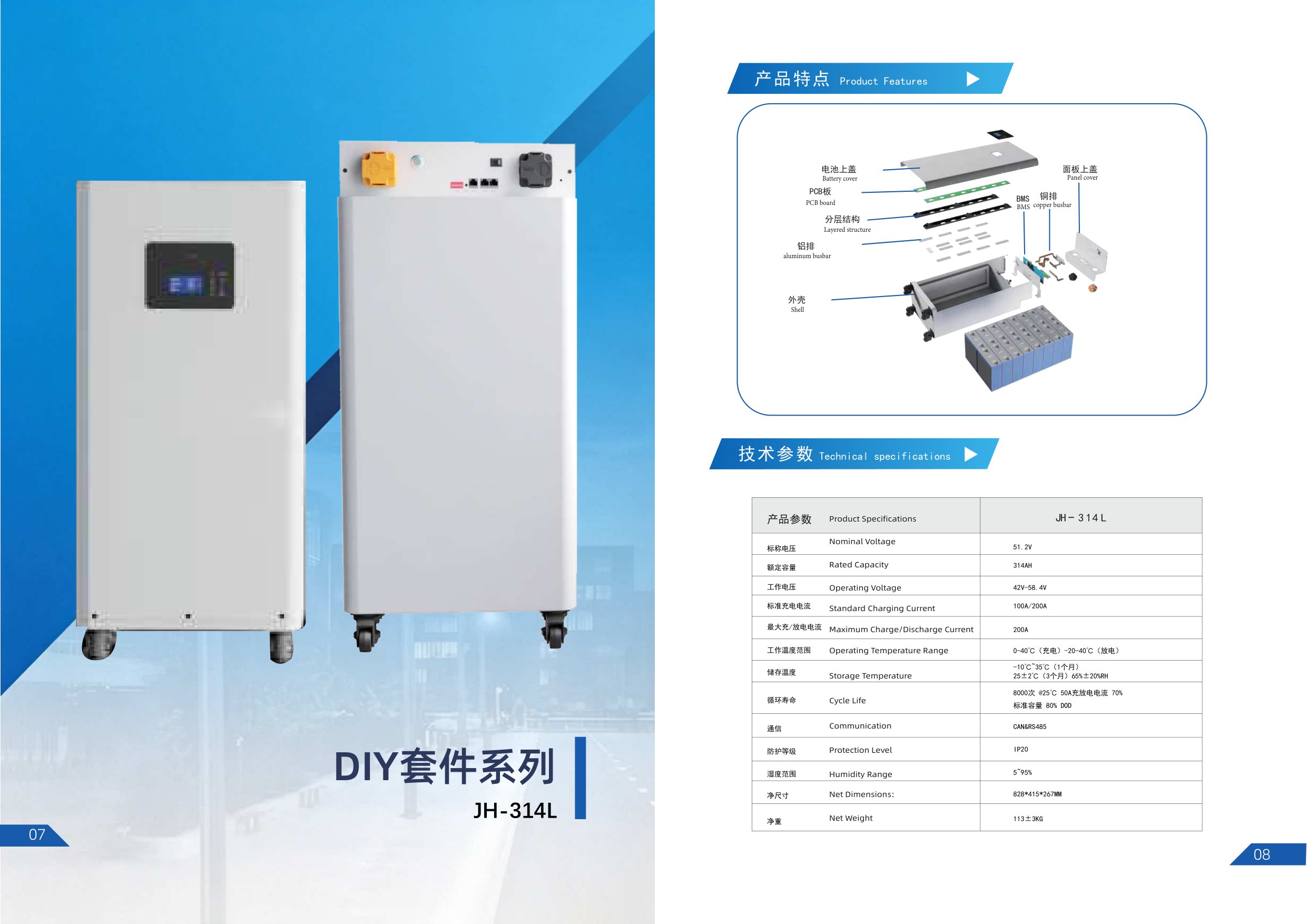

Specifications
| Model | JH-314L |
|---|---|
| Nominal Voltage | 51.2V |
| Rated Capacity | 314AH |
| Operating Voltage | 42V-58.4V |
| Standard Charging Current | 100A/200A |
| Maximum Charge/Discharge Current | 200A |
| Operating Temperature Range | 0-40℃（充电）-20-40℃（放电） |
| Storage Temperature | -10℃~35℃（1个月）25±2℃（3个月）65%±20%RH |
| Cycle Life | 8000次 @25℃ 50A充放电电流 70%标准容量 80% DOD |
| Communication | CAN&RS485 |
| Protection Level | IP20 |
| Humidity Range | 5~95% |
| Net Dimensions | 828*415*267MM |
| Net Weight | 113±3KG |
