JH-50
Home High-voltage Stacked Series 10.24-25.6KWh (JH-AC-S2 ~ S5)
Model: JH-50
Key Features
- Home high-voltage stacked lithium battery series
- LiFePO4 (lithium iron phosphate) cell
- 6000 cycle life
- CAN/RS485 communication
The JH-50 is part of BANAVE’s Home Energy Storage range — home High-voltage Stacked Series 10.24-25.6KWh (JH-AC-S2 ~ S5). Contact us for datasheets, certification documents and OEM/ODM options.

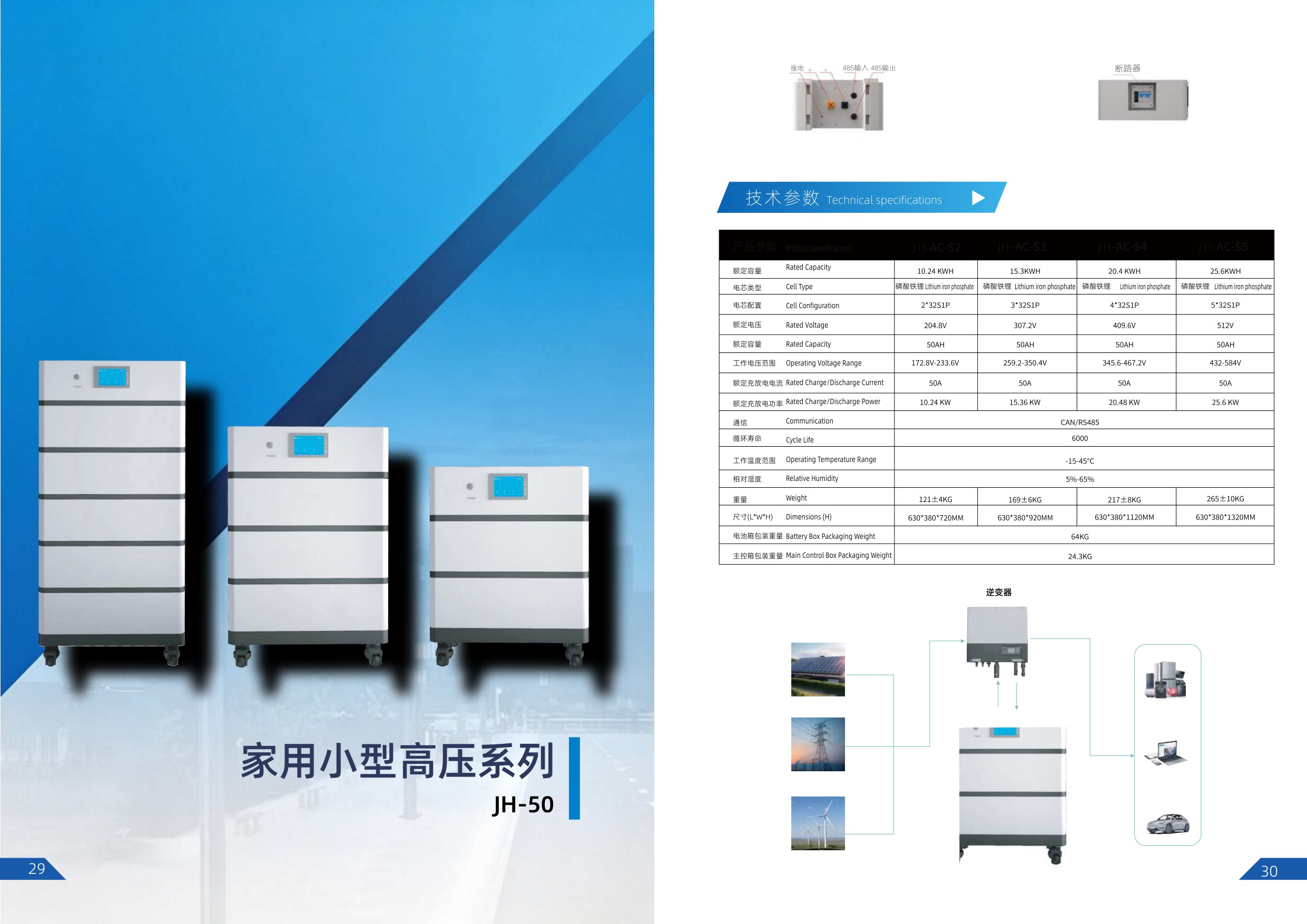

Specifications
| Model | JH-50 |
|---|---|
| Model Variants | JH-AC-S2 / JH-AC-S3 / JH-AC-S4 / JH-AC-S5 |
| Rated Capacity | 10.24 KWH / 15.3KWH / 20.4 KWH / 25.6KWH |
| Cell Type | Lithium iron phosphate |
| Cell Configuration | 2*32S1P / 3*32S1P / 4*32S1P / 5*32S1P |
| Rated Voltage | 204.8V / 307.2V / 409.6V / 512V |
| Rated Capacity (Ah) | 50AH |
| Operating Voltage Range | 172.8V-233.6V / 259.2-350.4V / 345.6-467.2V / 432-584V |
| Rated Charge/Discharge Current | 50A |
| Rated Charge/Discharge Power | 10.24 KW / 15.36 KW / 20.48 KW / 25.6 KW |
| Communication | CAN/RS485 |
| Cycle Life | 6000 |
| Operating Temperature Range | -15-45℃ |
| Relative Humidity | 5%-65% |
| Weight | 121±4KG / 169±6KG / 217±8KG / 265±10KG |
| Dimensions (L*W*H) | 630*380*720MM / 630*380*920MM / 630*380*1120MM / 630*380*1320MM |
| Battery Box Packaging Weight | 64KG |
| Main Control Box Packaging Weight | 24.3KG |
