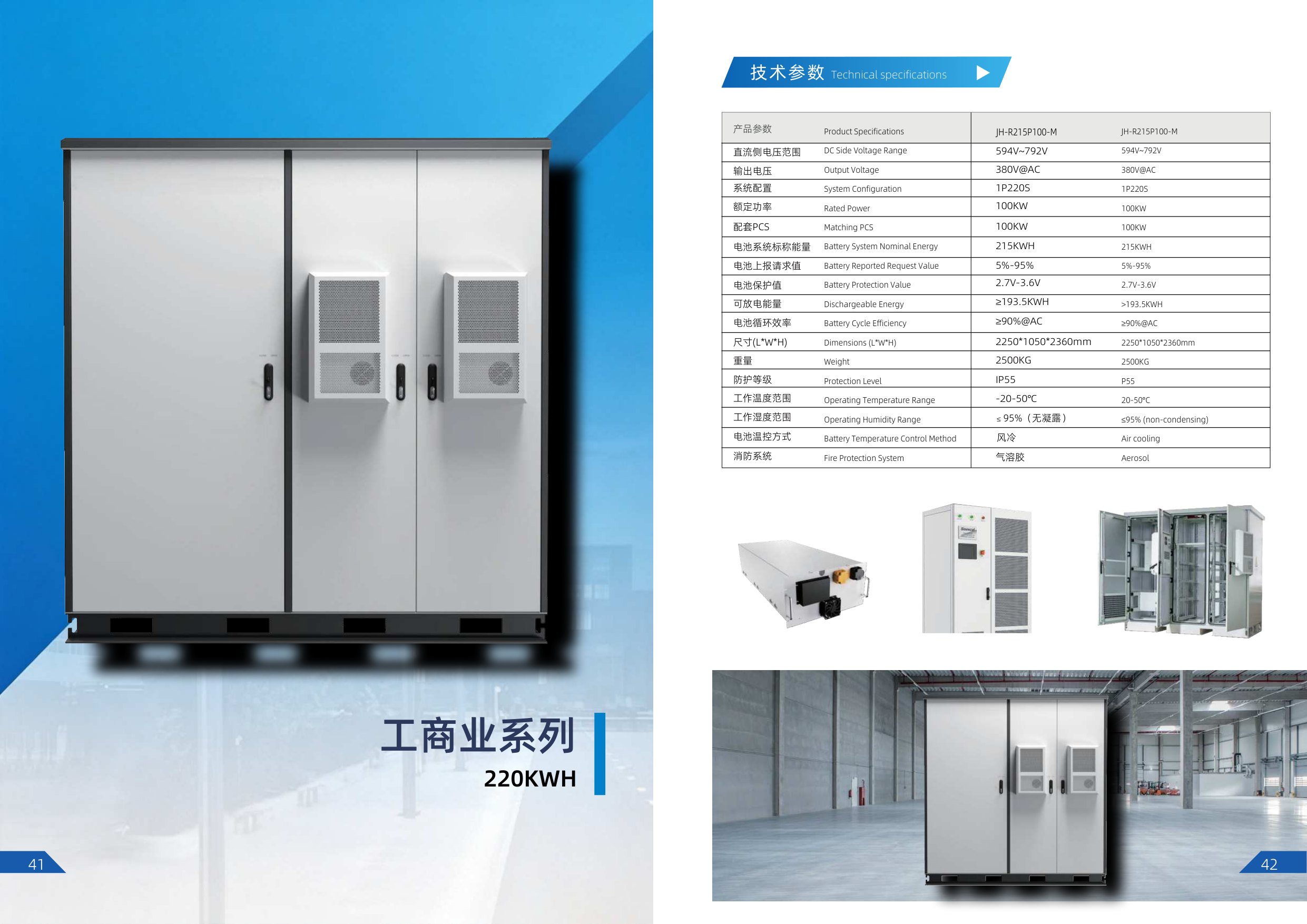

JH-R215P100-M
215KWH C&I Energy Storage System 100KW
Model: JH-R215P100-M
Key Features
- 215KWH commercial & industrial energy storage system
- 1P220S configuration with 100KW PCS
- IP55 protection with aerosol fire protection
- Air cooling
The JH-R215P100-M is part of BANAVE’s Commercial & Industrial range — 215KWH C&I Energy Storage System 100KW. Contact us for datasheets, certification documents and OEM/ODM options.
Specifications
| Model | JH-R215P100-M |
|---|---|
| DC Side Voltage Range | 594V~792V |
| Output Voltage | 380V@AC |
| System Configuration | 1P220S |
| Rated Power | 100KW |
| Matching PCS | 100KW |
| Battery System Nominal Energy | 215KWH |
| Battery Reported Request Value | 5%-95% |
| Battery Protection Value | 2.7V-3.6V |
| Dischargeable Energy | ≥193.5KWH |
| Battery Cycle Efficiency | ≥90%@AC |
| Dimensions (L*W*H) | 2250*1050*2360mm |
| Weight | 2500KG |
| Protection Level | IP55 |
| Operating Temperature Range | -20-50℃ |
| Operating Humidity Range | ≤95% (non-condensing) |
| Battery Temperature Control Method | Air cooling |
| Fire Protection System | Aerosol |
