JH50-PE-104
C&I Battery Cabinet 512V 104Ah 53.2KWh
Model: JH50-PE-104
Key Features
- 53.2KWh commercial battery cabinet
- 10*16S1P configuration, 512V 104AH
- CAN/RS485 communication
- IP20 protection
The JH50-PE-104 is part of BANAVE’s Commercial & Industrial range — c&I Battery Cabinet 512V 104Ah 53.2KWh. Contact us for datasheets, certification documents and OEM/ODM options.

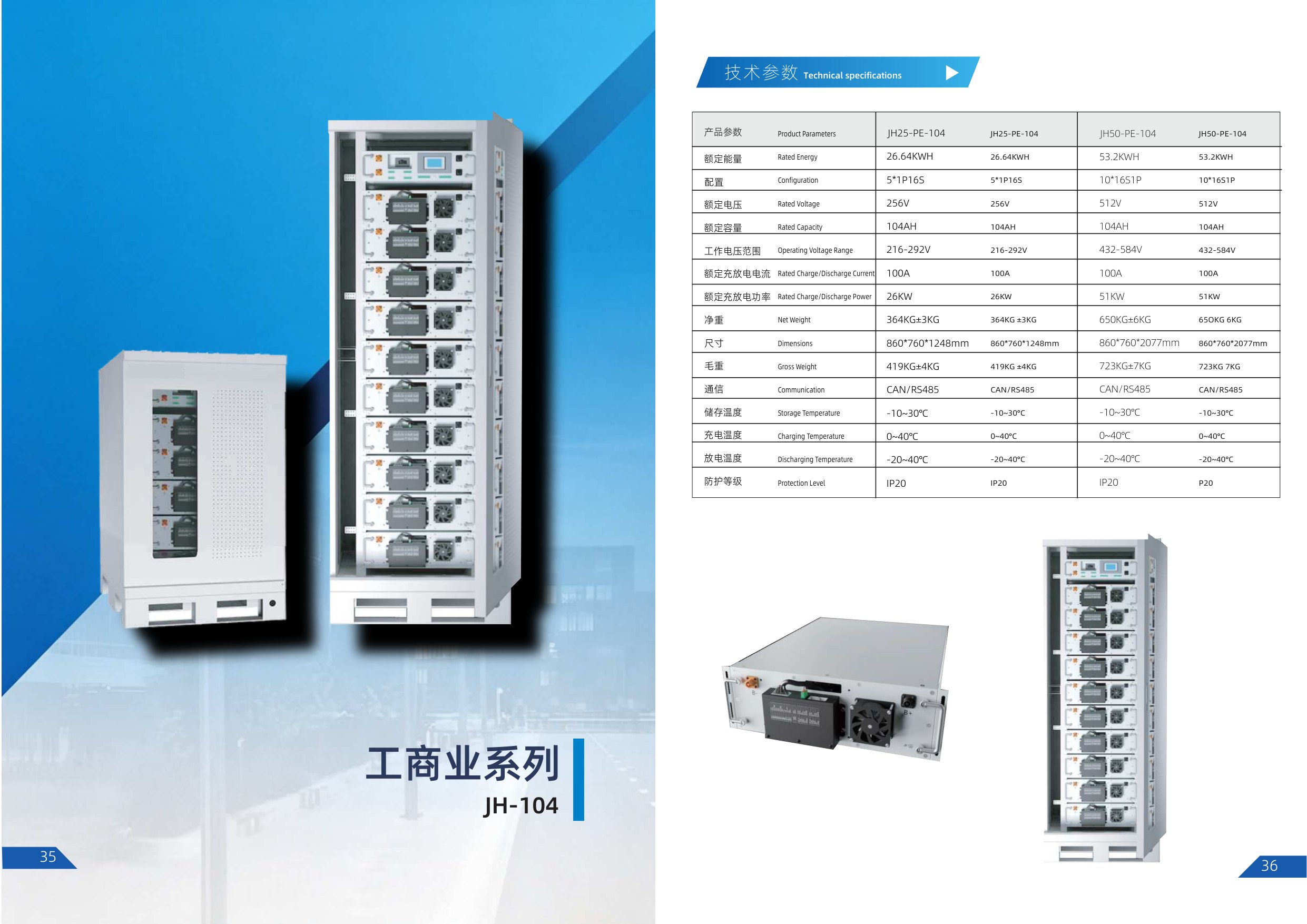

Specifications
| Model | JH50-PE-104 |
|---|---|
| Rated Energy | 53.2KWH |
| Configuration | 10*16S1P |
| Rated Voltage | 512V |
| Rated Capacity | 104AH |
| Operating Voltage Range | 432-584V |
| Rated Charge/Discharge Current | 100A |
| Rated Charge/Discharge Power | 51KW |
| Net Weight | 650KG±6KG |
| Dimensions | 860*760*2077mm |
| Gross Weight | 723KG±7KG |
| Communication | CAN/RS485 |
| Storage Temperature | -10~30℃ |
| Charging Temperature | 0~40℃ |
| Discharging Temperature | -20~40℃ |
| Protection Level | IP20 |
