JHR106P0050M
106KWH C&I Energy Storage Cabinet 50KW
Model: JHR106P0050M
Key Features
- 106KWH commercial & industrial energy storage system
- 1P160S configuration with 50KW supporting equipment
- MSDS, UN38.3, CE, ROHS certified
- IP54 protection with aerosol fire protection
The JHR106P0050M is part of BANAVE’s Commercial & Industrial range — 106KWH C&I Energy Storage Cabinet 50KW. Contact us for datasheets, certification documents and OEM/ODM options.

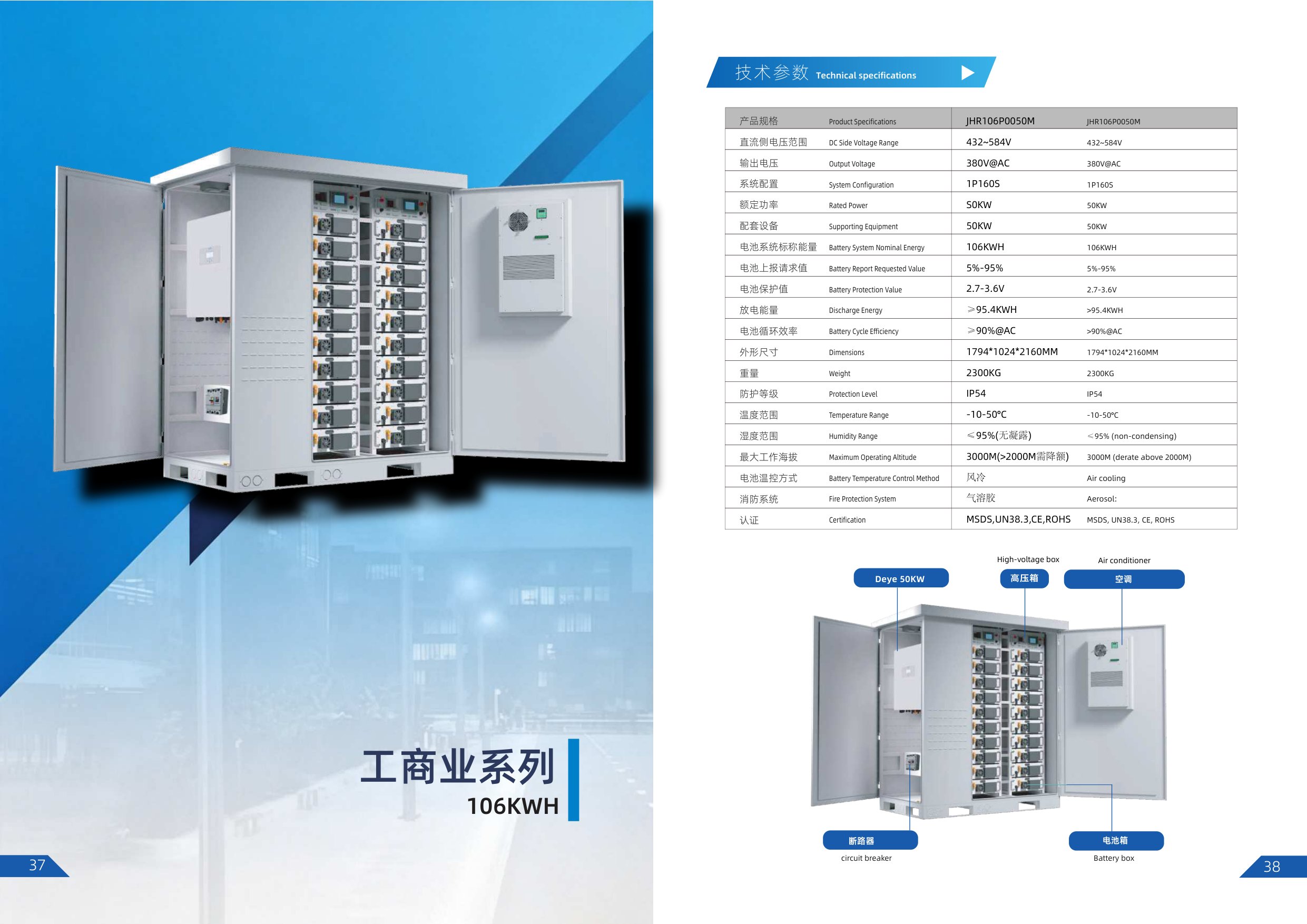

Specifications
| Model | JHR106P0050M |
|---|---|
| DC Side Voltage Range | 432~584V |
| Output Voltage | 380V@AC |
| System Configuration | 1P160S |
| Rated Power | 50KW |
| Supporting Equipment | 50KW |
| Battery System Nominal Energy | 106KWH |
| Battery Report Requested Value | 5%-95% |
| Battery Protection Value | 2.7-3.6V |
| Discharge Energy | ≥95.4KWH |
| Battery Cycle Efficiency | ≥90%@AC |
| Dimensions | 1794*1024*2160MM |
| Weight | 2300KG |
| Protection Level | IP54 |
| Temperature Range | -10-50°C |
| Humidity Range | ≤95% (non-condensing) |
| Maximum Operating Altitude | 3000M (derate above 2000M) |
| Battery Temperature Control Method | Air cooling |
| Fire Protection System | Aerosol |
| Certification | MSDS, UN38.3, CE, ROHS |
