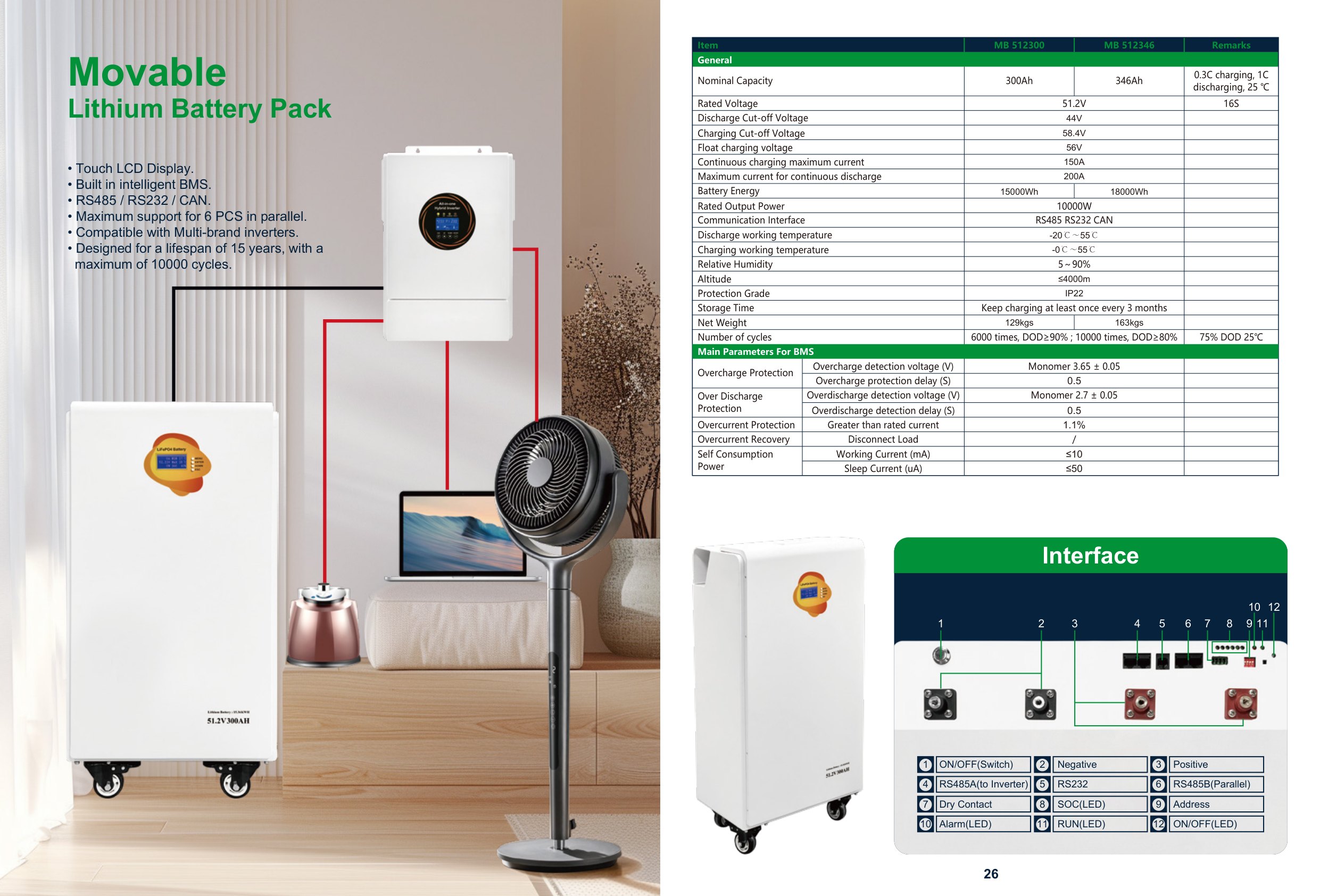

MB 512300 / MB 512346
Movable Lithium Battery Pack 51.2V 300Ah / 346Ah
Model: MB 512300 / MB 512346
Key Features
- Touch LCD display
- Built-in intelligent BMS
- RS485 / RS232 / CAN communication
- Maximum support for 6 PCS in parallel
- Compatible with multi-brand inverters
- Designed for a lifespan of 15 years, with a maximum of 10000 cycles
The MB 512300 / MB 512346 is part of BANAVE’s Solar Energy Storage range — movable Lithium Battery Pack 51.2V 300Ah / 346Ah. Contact us for datasheets, certification documents and OEM/ODM options.
Specifications
| Model | MB 512300 / MB 512346 |
|---|---|
| Nominal Capacity | 300Ah / 346Ah |
| Rated Voltage | 51.2V |
| Discharge Cut-off Voltage | 44V |
| Charging Cut-off Voltage | 58.4V |
| Float charging voltage | 56V |
| Continuous charging maximum current | 150A |
| Maximum current for continuous discharge | 200A |
| Battery Energy | 15000Wh / 18000Wh |
| Rated Output Power | 10000W |
| Communication Interface | RS485 RS232 CAN |
| Discharge working temperature | -20℃～55℃ |
| Charging working temperature | -0℃～55℃ |
| Relative Humidity | 5～90% |
| Altitude | ≤4000m |
| Protection Grade | IP22 |
| Net Weight | 129kgs / 163kgs |
| Number of cycles | 6000 times, DOD≥90% ; 10000 times, DOD≥80% |
