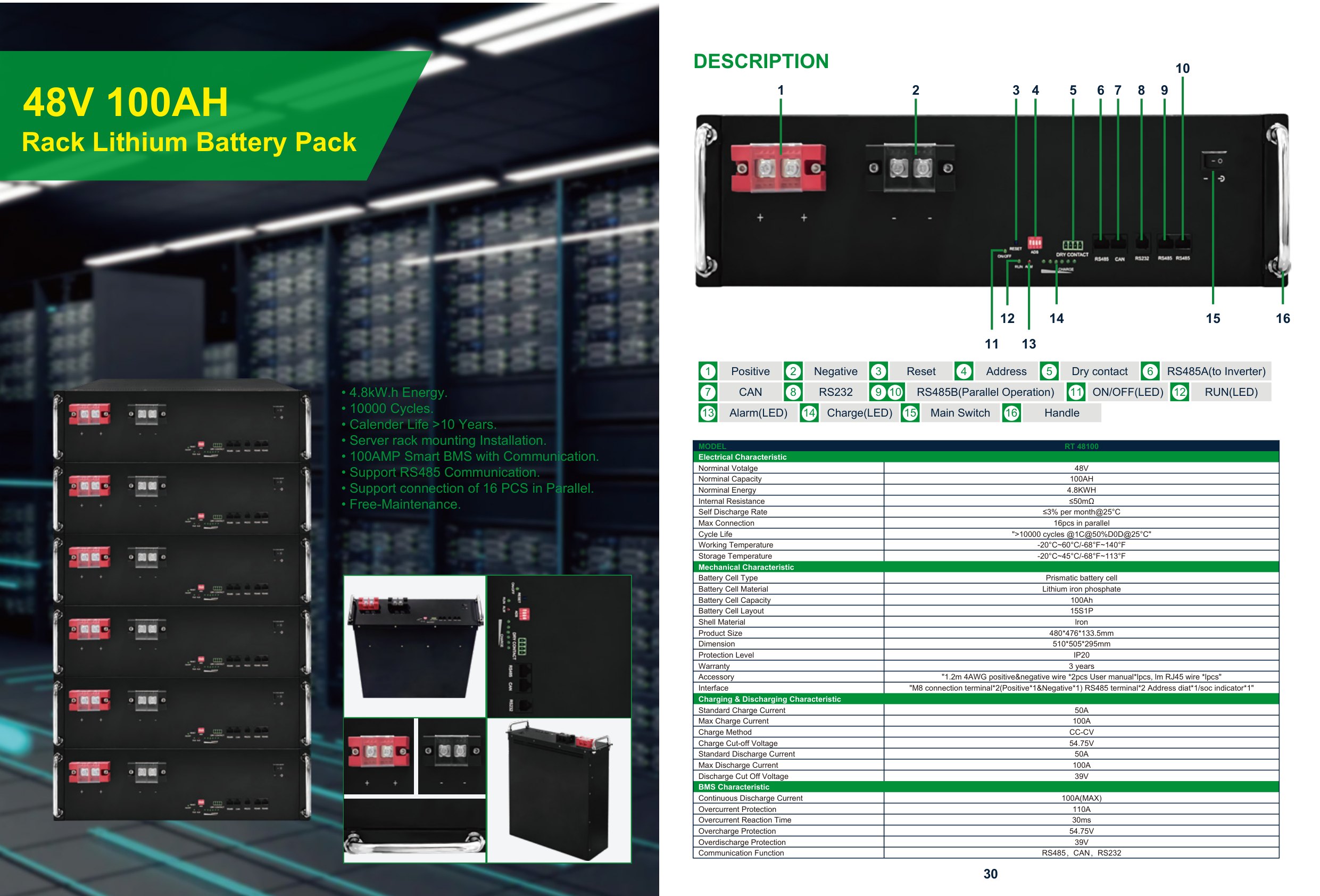

RT 48100
48V 100AH Rack Lithium Battery Pack 4.8kWh
Model: RT 48100
Key Features
- 4.8kW.h energy
- 10000 cycles
- Calendar life >10 years
- Server rack mounting installation
- 100AMP smart BMS with communication
- Support RS485 communication; support connection of 16 PCS in parallel
The RT 48100 is part of BANAVE’s Solar Energy Storage range — 48V 100AH Rack Lithium Battery Pack 4.8kWh. Contact us for datasheets, certification documents and OEM/ODM options.
Specifications
| Model | RT 48100 |
|---|---|
| Nominal Voltage | 48V |
| Nominal Capacity | 100AH |
| Nominal Energy | 4.8KWH |
| Internal Resistance | ≤50mΩ |
| Self Discharge Rate | ≤3% per month@25°C |
| Max Connection | 16pcs in parallel |
| Cycle Life | >10000 cycles @1C@50%DOD@25°C |
| Working Temperature | -20°C~60°C/-68°F~140°F |
| Storage Temperature | -20°C~45°C/-68°F~113°F |
| Battery Cell Type | Prismatic battery cell |
| Battery Cell Material | Lithium iron phosphate |
| Battery Cell Capacity | 100Ah |
| Battery Cell Layout | 15S1P |
| Shell Material | Iron |
| Product Size | 480*476*133.5mm |
| Dimension | 510*505*295mm |
| Protection Level | IP20 |
| Warranty | 3 years |
| Standard Charge Current | 50A |
| Max Charge Current | 100A |
| Charge Method | CC-CV |
| Charge Cut-off Voltage | 54.75V |
| Standard Discharge Current | 50A |
| Max Discharge Current | 100A |
| Discharge Cut Off Voltage | 39V |
| Continuous Discharge Current | 100A(MAX) |
| Overcurrent Protection | 110A |
| Overcharge Protection | 54.75V |
| Overdischarge Protection | 39V |
| Communication Function | RS485，CAN，RS232 |
