US PH Series
US PH Series Portable Power Station 650-2000Wh (300W/500W/1000W)
Model: US PH Series
Key Features
- Bidirectional Inversion
- High Cost Performance
- LiFePO4 Battery
- Metal Housing
- Safe and reliable
The US PH Series is part of BANAVE’s Portable Power range — uS PH Series Portable Power Station 650-2000Wh (300W/500W/1000W). Contact us for datasheets, certification documents and OEM/ODM options.

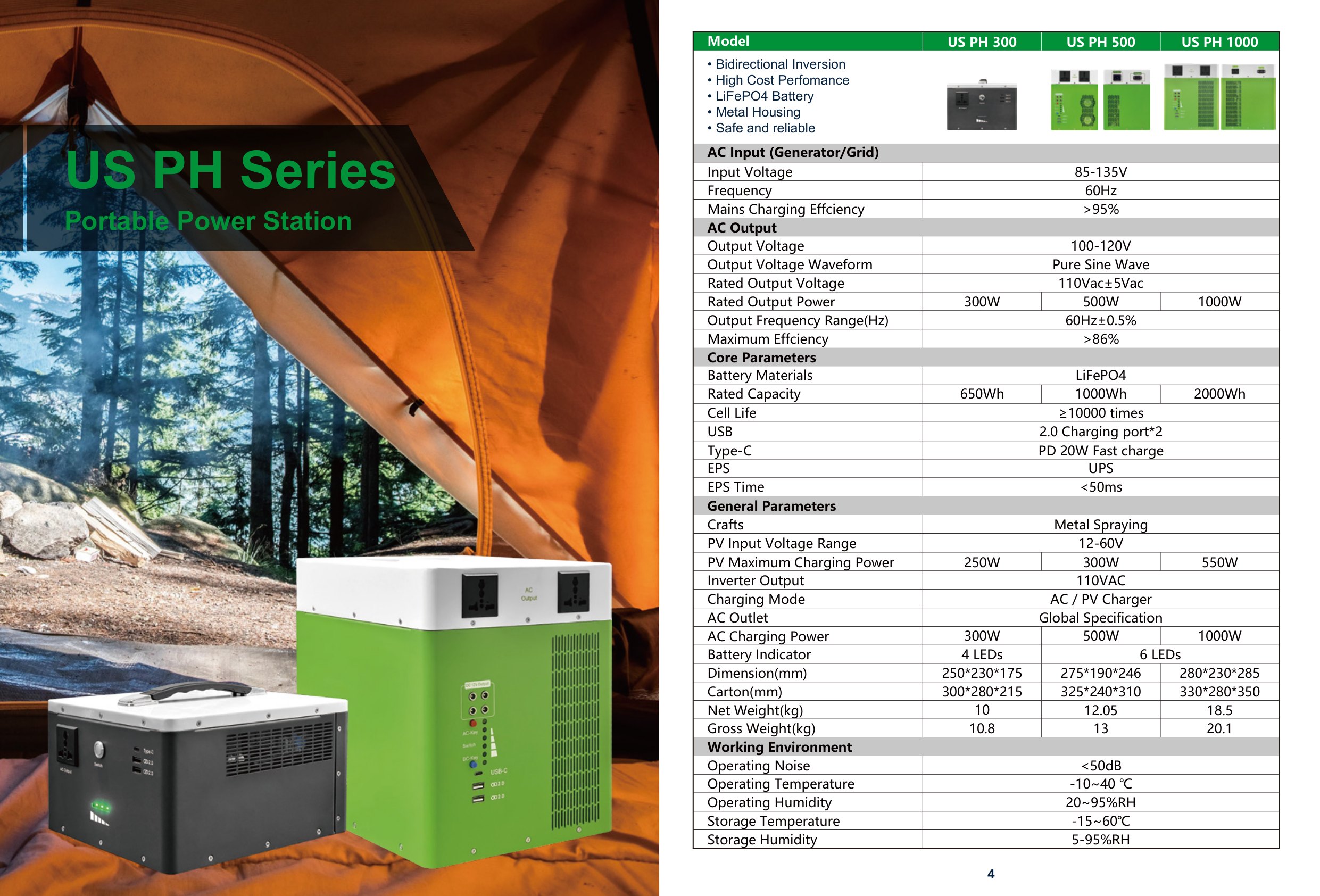

Specifications
| Model | US PH 300 / US PH 500 / US PH 1000 |
|---|---|
| AC Input (Generator/Grid) - Input Voltage | 85-135V |
| AC Input (Generator/Grid) - Frequency | 60Hz |
| AC Input (Generator/Grid) - Mains Charging Efficiency | >95% |
| AC Output - Output Voltage | 100-120V |
| AC Output - Output Voltage Waveform | Pure Sine Wave |
| AC Output - Rated Output Voltage | 110Vac±5Vac |
| AC Output - Rated Output Power | 300W / 500W / 1000W |
| AC Output - Output Frequency Range(Hz) | 60Hz±0.5% |
| AC Output - Maximum Efficiency | >86% |
| Battery Materials | LiFePO4 |
| Rated Capacity | 650Wh / 1000Wh / 2000Wh |
| Cell Life | ≥10000 times |
| USB | 2.0 Charging port*2 |
| Type-C | PD 20W Fast charge |
| EPS | UPS |
| EPS Time | <50ms |
| Crafts | Metal Spraying |
| PV Input Voltage Range | 12-60V |
| PV Maximum Charging Power | 250W / 300W / 550W |
| Inverter Output | 110VAC |
| Charging Mode | AC / PV Charger |
| AC Outlet | Global Specification |
| AC Charging Power | 300W / 500W / 1000W |
| Battery Indicator | 4 LEDs / 6 LEDs |
| Dimension(mm) | 250*230*175 / 275*190*246 / 280*230*285 |
| Carton(mm) | 300*280*215 / 325*240*310 / 330*280*350 |
| Net Weight(kg) | 10 / 12.05 / 18.5 |
| Gross Weight(kg) | 10.8 / 13 / 20.1 |
| Operating Noise | <50dB |
| Operating Temperature | -10~40 ℃ |
| Operating Humidity | 20~95%RH |
| Storage Temperature | -15~60℃ |
| Storage Humidity | 5-95%RH |
